Automatic Gate Opener Using Arduino

Introduction

The Automatic Gate Opener project is an innovative and practical application of Arduino technology, designed to automate the process of opening and closing gates. This project is ideal for enhancing security and convenience for residential or commercial properties. It utilizes an Arduino microcontroller to control a motor that operates the gate, incorporating sensors and remote control features for smooth and efficient operation.

 Objectives

1. Automation: Automate the process of opening and closing the gate to improve convenience and security.

2. Remote Control: Enable remote operation of the gate using wireless technologies.

3. Safety: Ensure safe operation by incorporating sensors to detect obstacles and prevent accidents.

4. Cost-Effectiveness: Develop a cost-effective solution using readily available components.

Components Required

- Arduino Uno or Mega

- DC Motor or Servo Motor

- Infrared (IR) Sensors or Ultrasonic Sensors

- Limit Switches

- Power Supply (12V DC adapter)

- Connecting Wires

- Breadboard

- Mounting Hardware

System Overview

The system is composed of several key components:

1. Arduino Microcontroller : Acts as the brain of the system, processing input from sensors and controlling the motor.

2.  Motor Driver : Interfaces the Arduino with the motor, allowing for the control of motor direction and speed.

3. Sensors: Detect the presence of obstacles and provide input to the Arduino to stop or reverse the motor if necessary.

4. Remote Control Module: Allows the user to operate the gate remotely using RF communication.

5. Limit Switches: Ensure the gate stops at the fully open and fully closed positions.

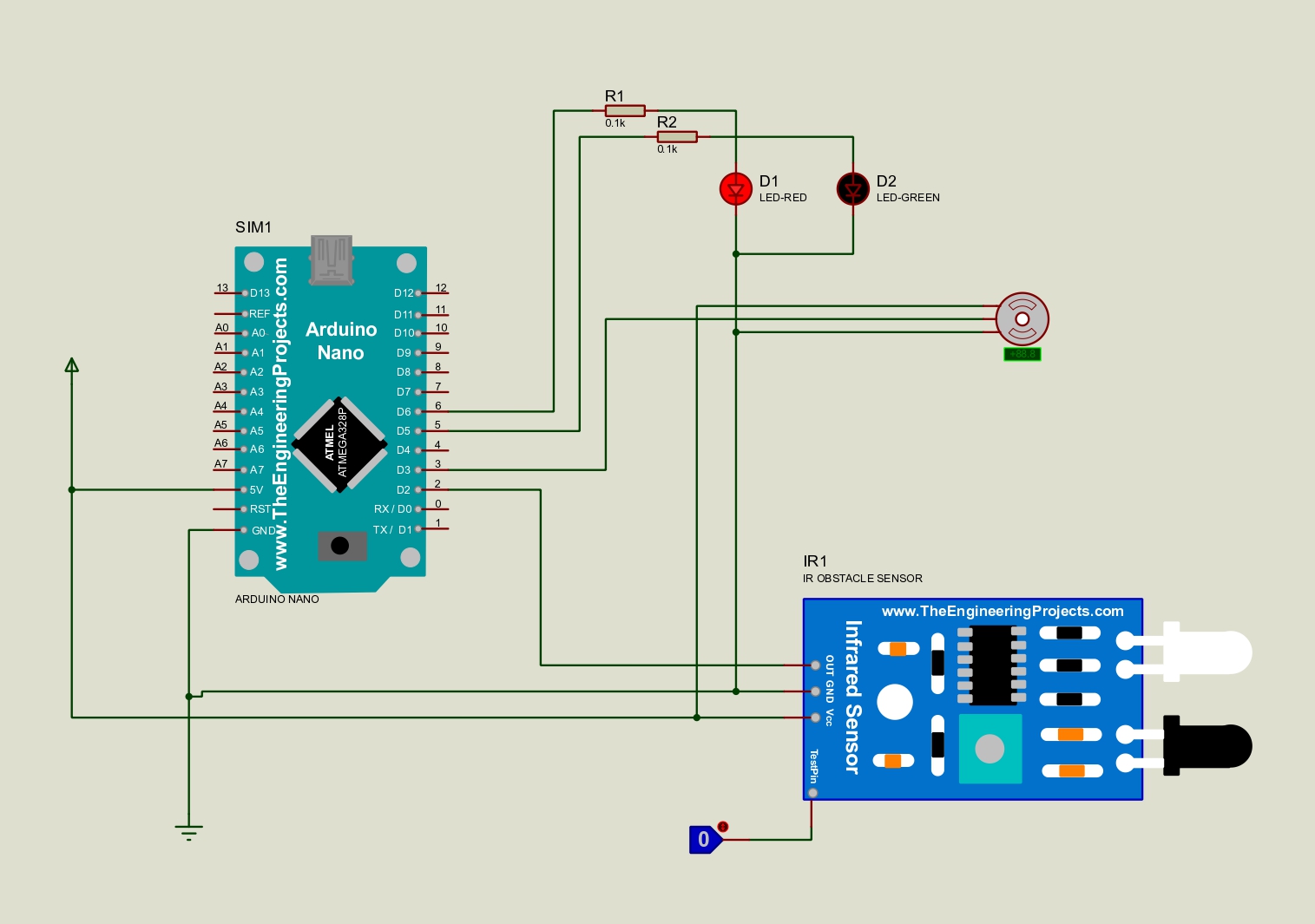

Circuit Diagram

Arduino Code

#include <Servo.h>

Servo s1;

int val = 0 ;

void setup()

{

    Serial.begin(9600); // sensor buart rate

    s1.attach(3);

    pinMode(2,INPUT);

    pinMode(5,OUTPUT);  // led green pin

    pinMode(6,OUTPUT);  // led red pin

}

void loop()

{

  val = digitalRead(2);  // IR sensor output pin connected

  Serial.println(val);   // see the value in serial mpnitor in Arduino IDE

  delay(1);



  if(val == 1 )

  {

    digitalWrite(5,HIGH);  // LED ON

    digitalWrite(6,LOW);   // LED OFF

    s1.write(90);

    delay(2000);



  }

  else

  {

    digitalWrite(5,LOW);   // LED OFF

    digitalWrite(6,HIGH);  // LED ON

    s1.write(0);



  }

  }

Explanation

1. Setup Function: Initializes the pins and attaches the motor to the specified pin.

2. Loop Function: Continuously checks the status of the open, close, and sensor pins. Depending on the input, it calls the corresponding function to open, close, or stop the gate.

3. Motor Control Functions: `openGate()`, `closeGate()`, and `stopGate()` control the position of the servo motor to open, close, or stop the gate.

Construction

1. Mounting the Motor : Secure the motor to the gate frame, ensuring it has enough torque to move the gate smoothly.

2. Wiring : Connect the motor driver to the Arduino and motor, and wire the sensors and limit switches to the appropriate pins on the Arduino.

3. Power Supply : Connect the power supply to the motor driver and Arduino, ensuring the voltage and current ratings are compatible.

Safety Considerations

Obstacle Detection : Ensure the sensors are correctly positioned and calibrated to detect obstacles and prevent accidents.

Emergency Stop : Implement a manual override or emergency stop button in case of system failure.

Secure Mounting : Ensure all components are securely mounted to prevent mechanical failures.

Conclusion

The Automatic Gate Opener using Arduino is a practical and efficient solution for automating gate operation. By integrating sensors, remote control, and robust motor control, this project enhances security and convenience for users. With careful construction and calibration, the system can provide reliable and safe operation.
